Swap out Swagger UI for ReDoc

Last updated:

Legacy: Tyk Classic Portal

You’re viewing documentation for the Tyk Classic Portal, which is no longer actively maintained.

If you’re looking for the latest API documentation for the new Tyk Developer Portal, please refer to the Postman collection or visit the Tyk Developer Portal section.

The Classic Portal is in maintenance mode and will be deprecated soon. For questions or support, contact us at support@tyk.io.

This short guide will show you how easy it is to swap out out the default https://swagger.io/tools/swagger-ui/ library for Portal Catalog API documentation for another tool like ReDoc

  • Open up the default /opt/tyk-dashboard/portal/templates/swagger.html
  {{ define "swaggerPage" }}
  {{ template "header" .}}
  <link href='/portal-assets/css/swagger.min.css' media='screen' rel='stylesheet' type='text/css'/>
  <!-- <link href='/portal-assets/css/swagger-ui.css' media='screen' rel='stylesheet' type='text/css'/> -->
  <body>
    {{ template "navigation" . }}
    <div>
      <div class="container" style="margin-top: 80px;">
        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" style="position:absolute;width:0;height:0">
...
        </svg>
        <div id="swagger-ui"></div>
      </div>
    </div>
    {{ template "footer" .}}
    {{ template "scripts" .}}
    <script src="/portal-assets/js/vendors.min.js"> </script>
    <script src="/portal-assets/js/swagger.min.js"> </script>
    <script type="text/javascript">
...
    </script>
  </body>
</html>
{{ end }}
  • Replace the content of swagger.html with the following:
  {{ define "swaggerPage" }}
  {{ template "header" .}}
  <body>
    {{ template "navigation" . }}
    <div>
      <div class="container" style="margin-top: 80px;">
        <redoc spec-url="{{.SwaggerURL}}"></redoc>
      </div>
    </div>
    {{ template "footer" .}}
    <script src="https://cdn.jsdelivr.net/npm/redoc@next/bundles/redoc.standalone.js"></script>
  </body>
</html>
{{ end }}

  • Restart your dashboard service

  • Browse your portal documentation

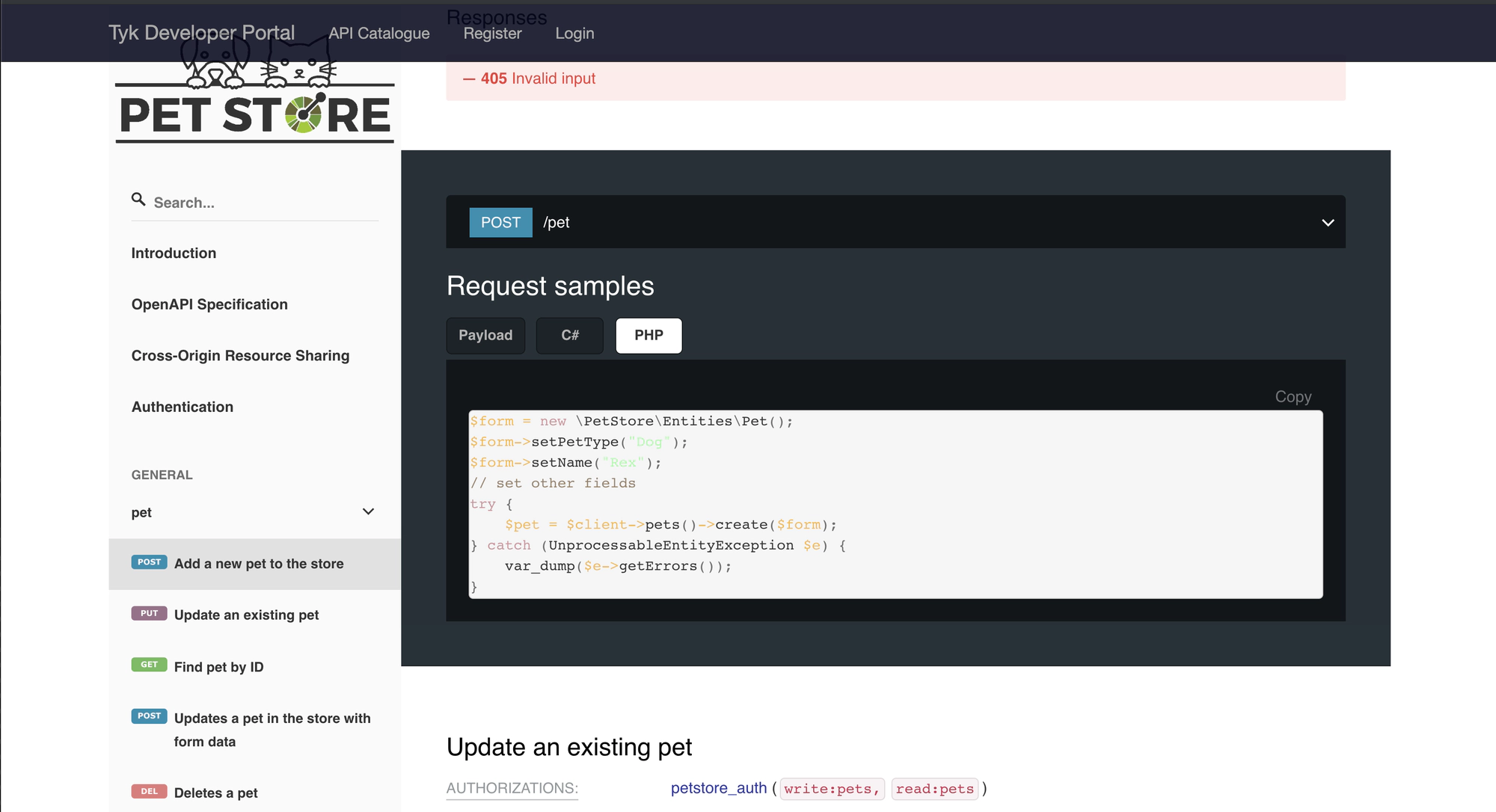

Tyk Portal Catalogue API Documentation with ReDoc
